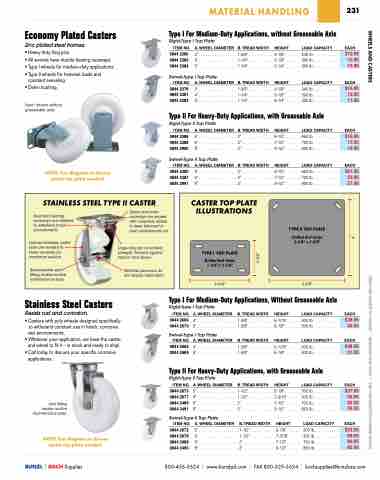

Page 231 - 2021 Bunzl Buyers Guide Interactive Catalog

Economy Plated Casters
Zinc plated steel frames.
• Heavy-duty king pins.
• All swivels have double bearing raceways.
• Type I wheels for medium-duty applications.
• Type II wheels for heaviest loads and constant swiveling.
• Delrin bushing.
Type I shown without greaseable axle.
NOTE: See diagram to choose caster top plate needed.
Type I For Medium-Duty Applications, without Greaseable Axle
ITEM NO. 0844 2380 0844 2382 0844 2384
A. WHEEL DIAMETER
3" . . . . . . . . . . . . . . . . . 4" . . . . . . . . . . . . . . . . . 5" . . . . . . . . . . . . . . . . .
B. TREAD WIDTH HEIGHT
1-3/8" . . . . . . . . . . . .4-1/8" . . . . . . . 1-1/4" . . . . . . . . . . . .5-1/8" . . . . . . . 1-1/4" . . . . . . . . . . . .6-1/4" . . . . . . .
LOAD CAPACITY
240 lb . . . . . . . . . . . 300 lb . . . . . . . . . . . 300 lb . . . . . . . . . . .
LOAD CAPACITY
240 lb . . . . . . . . . . . 300 lb . . . . . . . . . . . 300 lb . . . . . . . . . . .
.
.
.
EACH
EACH
EACH
EACH
MATERIAL HANDLING
231
Rigid-Type I Top Plate
$10.95
10.95
13.95
Swivel-Type I Top Plate
ITEM NO. 0844 2379 0844 2381 0844 2383
A. WHEEL DIAMETER
3" . . . . . . . . . . . . . . . . . 4" . . . . . . . . . . . . . . . . . 5" . . . . . . . . . . . . . . . . .
B. TREAD WIDTH
HEIGHT
$14.95
12.95
17.95
ITEM NO. 0844 2386 0844 2388 0844 2990
A. WHEEL DIAMETER
5" . . . . . . . . . . . . . . . . . 6" . . . . . . . . . . . . . . . . . 8" . . . . . . . . . . . . . . . . .
B. TREAD WIDTH HEIGHT
2" . . . . . . . . . . . . . . .6-1/2" . . . . . . . 2" . . . . . . . . . . . . . . .7-1/2" . . . . . . . 2" . . . . . . . . . . . . . . .9-1/2" . . . . . . .
B. TREAD WIDTH HEIGHT
2" . . . . . . . . . . . . . . .6-1/2" . . . . . . . 2" . . . . . . . . . . . . . . .7-1/2" . . . . . . . 2" . . . . . . . . . . . . . . .9-1/2" . . . . . . .
LOAD CAPACITY
650 lb . . . . . . . . . . . 700 lb . . . . . . . . . . . 900 lb . . . . . . . . . . .
LOAD CAPACITY
650 lb . . . . . . . . . . . 700 lb . . . . . . . . . . . 900 lb . . . . . . . . . . .
.
.
.
1-3/8" . . . . . . . . . . . .4-1/8" . . . . . . . 1-1/4" . . . . . . . . . . . .5-1/8" . . . . . . . 1-1/4" . . . . . . . . . . . .6-1/4" . . . . . . .
.
.
.
Type II For Heavy-Duty Applications, with Greaseable Axle
Rigid-Type II Top Plate
$16.95
17.95
19.95
Swivel-Type II Top Plate
ITEM NO. 0844 2385 0844 2387 0844 2991
A. WHEEL DIAMETER
5" . . . . . . . . . . . . . . . . 6" . . . . . . . . . . . . . . . . 8" . . . . . . . . . . . . . . . .
.
.
.
.
.
.
$21.95
22.95
27.95
CASTER TOP PLATE ILLUSTRATIONS
TYPE I TOP PLATE
Slotted Bolt Holes 1-3/4" x 2-7/8"
3-5/8"
TYPE II TOP PLATE
Slotted Bolt Holes 2-5/8" x 3-5/8"
3-5/8"
STAINLESS STEEL TYPE II CASTER
Dual ball bearing raceways are stainless to withstand harsh environments.
Formed stainless caster forks are welded to lower raceway for maximum service.
Replaceable zerk fitting makes routine maintenance easy.
Upper and lower raceways are sealed with neoprene rubber to keep lubricant in and contaminants out.
Large king pin for added strength. Protects against impact and abuse.
Stainless spanners do not require lubrication.
Stainless Steel Casters
Resists rust and corrosion.
• Casters with poly wheels designed specifically to withstand constant use in harsh, corrosive
wet environments.
• Whatever your application, we have the caster
and wheel to fit it – in stock and ready to ship!
• Call today to discuss your specific corrosive applications.
Zerk fitting makes routine maintenance easy.
NOTE: See diagram to choose caster top plate needed.
Type I For Medium-Duty Applications, Without Greaseable Axle
Rigid-Type I Top Plate
ITEM NO. 0844 2666 0844 2670
A. WHEEL DIAMETER
4" . . . . . . . . . . . . . . . . . 5" . . . . . . . . . . . . . . . . .
B. TREAD WIDTH HEIGHT
.1-3/8" . . . . . . . . . . . .5-1/16" . . . . . . .1-3/8" . . . . . . . . . . . .6-1/8" . . . . . . .
LOAD CAPACITY
EACH
EACH
EACH
EACH
$28.95
30.95
Swivel-Type I Top Plate
300 lb . . . . . . . . . . . . 300 lb . . . . . . . . . . . .
LOAD CAPACITY
300 lb . . . . . . . . . . . . 300 lb . . . . . . . . . . . .
ITEM NO. 0844 2665 0844 2669
A. WHEEL DIAMETER
4" . . . . . . . . . . . . . . . . . 5" . . . . . . . . . . . . . . . . .
B. TREAD WIDTH
HEIGHT
$48.95
51.95
.1-3/8" . . . . . . . . . . . .5-1/16" . . . . . . .1-3/8" . . . . . . . . . . . .6-1/8" . . . . . . .
Type II For Heavy-Duty Applications, with Greaseable Axle
Rigid-Type II Top Plate
ITEM NO. 0844 2673 0844 2677 0844 3489 0844 3491
A. WHEEL DIAMETER
5" . . . . . . . . . . . . . . . . . . 6" . . . . . . . . . . . . . . . . . . 6" . . . . . . . . . . . . . . . . . . 8" . . . . . . . . . . . . . . . . . .
B. TREAD WIDTH HEIGHT
1-1/2" . . . . . . . . . . . .6-1/8" . . 1-1/2" . . . . . . . . . . . .7-3/16" . 2" . . . . . . . . . . . . . . .7-1/2" . . 2" . . . . . . . . . . . . . . .9-1/2" . .
LOAD CAPACITY
. . . . . 300 lb . . . . . . . . . . . .
. . . . . 300 lb . . . . . . . . . . . .
. . . . . 700 lb . . . . . . . . . . . .
. . . . . 850 lb . . . . . . . . . . . .
$37.95
45.95
55.95
65.95
Swivel-Type II Top Plate
ITEM NO. 0844 2672 0844 2676 0844 3488 0844 3490
A. WHEEL DIAMETER
5" . . . . . . . . . . . . . . . . . . 6" . . . . . . . . . . . . . . . . . . 6" . . . . . . . . . . . . . . . . . . 8" . . . . . . . . . . . . . . . . . .
B. TREAD WIDTH HEIGHT
1-1/2" . . . . . . . . . . . .6-1/8" . . . . . . 1-1/2" . . . . . . . . . . . .7-3/16" . . . . . 2" . . . . . . . . . . . . . . .7-1/2" . . . . . . 2" . . . . . . . . . . . . . . .9-1/2" . . . . . .
LOAD CAPACITY
. 300 lb . . . . . . . . . . . . 300 lb . . . . . . . . . . . . 700 lb . . . . . . . . . . . . 850 lb . . . . . . . . . . .
.
.
.
.
$53.95
69.95
80.95
92.95
BUNZL | KOCH Supplies
800-456-5624 | www.bunzlpd.com | FAX 800-329-5624 | kochsupplies@bunzlusa.com
2-3/8"
4"
WHEELS AND CASTERS PRICES ARE SUBJECT TO CHANGE • MINIMUMS MAY APPLY • VISIT OUR WEBSITE FOR CURRENT PRICING.
