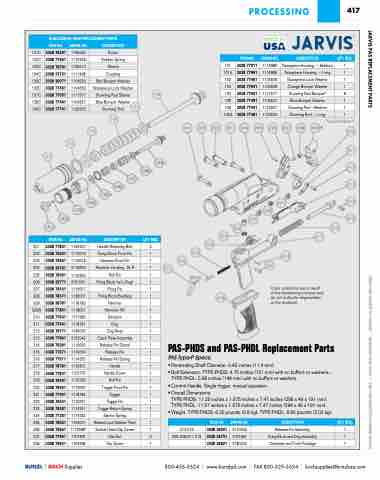

Page 417 - 2021 Bunzl Buyers Guide Interactive Catalog

PROCESSING
417
CONCUSSION HEAD REPLACEMENT PARTS
ITEM NO.
JARVIS NO.
DESCRIPTION
101C
3028 78291
1165094
Piston
102C 3028 77561 1114228 Rubber Spring
103C
3028 78791
1109214
Sleeve
104C 3028 37151 1111498 Coupling
105C
3028 36071
1104536
Red Bumper Washer
106C 3028 77461 1104539 Nosepiece Lock Washer
107C
3028 77051
1171577
Stunning Rod Sleeve
108C 3028 77491 1104537 Blue Bumper Washer
109C
3028 77741
1120533
Stunning Rod
ITEM NO.
JARVIS NO.
DESCRIPTION
QTY. REQ.
101 3028 77911 1116986 Nosepiece Housing — Medium 1
101A
3028 77991
1116985
Nosepiece Housing — Long
1
102 3028 77461 1104539 Nosepiece Lock Washer 1
103
3028 77641
1104536
Orange Bumper Washer
1
104 3028 77051 1171577 Stunning Rod Bumper* 8
105
3028 77491
1104537
Blue Bumper Washer
1
106 3028 77441 1120507 Stunning Rod - Medium 1
106A
3028 77481
1120530
Stunning Rod — Long
1
*Long Bolt requires 9
A
C C
C C
C C
C C
C
ITEM NO.
JARVIS NO.
DESCRIPTION
QTY. REQ.
201 3028 77801 1154257 Handle Retaining Bolt 2
202
3028 78301
1110616
Firing Block Pivot Pin
1
203 3028 78261 1110618 Hammer Pivot Pin 1
204
3028 36761
3116602
Receiver Housing .25 R
1
205 3028 78361 1110250 Roll Pin 1
206
3028 36771
3161001
Firing Block (w/o Dog)
1
207 3028 78161 1110617 Firing Pin 1
208
3028 78371
1136001
Firing Block Bushing
1
209 3028 36781 1118182 Hammer 1
209A
3028 77851
1118001
Hammer HD
1
210 3028 77601 1171582 Extractor 1
211
3028 77941
1118181
Dog
1
212 3028 78171 1145030 Dog Rivet 1
213
3028 77661
3132042
Catch Plate Assembly
1
214 3028 78281 1110620 Release Pin Dowel 1
215
3028 77671
1110619
Release Pin
1
216 3028 77511 1114253 Release Pin Spring 1
217
3028 78781
1119301
Handle
1
218 3028 77841 1102775 Handle Cover 1
219
3028 78491
1110239
Roll Pin
1
220 3028 78451 1110633 Trigger Pivot Pin 1
221
3028 77921
1118183
Trigger
1
222 3028 78441 1110621 Trigger Pin 1
223
3028 78381
1114251
Trigger Return Spring
1
224 3028 77381 1114252 Ejector Spring 1
225
3028 78551
1104001
Ribbed Lock Washer (Pair)
1
226 3028 78561 1173289* Socket Head Cap Screw 1
227
3028 77951
1107493
Hex Nut
2
228 3028 78621 1154258 Trip Screw 1
PAS-PHDS and PAS-PHDL Replacement Parts
PAS Type-P Specs:
• Penetrating Shaft Diameter: 0.45 inches (11.4 mm).
• Bolt Extension: TYPE-PHDS: 4.75 inches (121 mm) with no buffers or washers.; TYPE-PHDL: 5.88 inches (149 mm) with no buffers or washers.
• Control Handle: Single trigger, manual operation.
• Overall Dimensions:
TYPE-PHDS: 11.25 inches x 1.875 inches x 7.47 inches (286 x 48 x 191 mm); TYPE-PHDL: 11.57 inches x 1.875 inches x 7.47 inches (294 x 48 x 191 mm).
• Weight: TYPE-PHDS: 6.20 pounds (2.8 kg); TYPE-PHDL: 6.65 pounds (3.02 kg).
Color variations are a result of the hardening process and do not indicate degradation of the material.
ITEM NO.
JARVIS NO.
DESCRIPTION
QTY. REQ.
214-215 3028 36501 3110009 Release Pin Assembly 1
205-208/211-212
3028 36791
3161561
Firing Block and Dog Assembly
1
3028 36821 3180003 Container and Tools Package 1
BUNZL | KOCH Supplies 800-456-5624 | www.bunzlpd.com | FAX 800-329-5624 | kochsupplies@bunzlusa.com
JARVIS PAS REPLACEMENT PARTS PRICES ARE SUBJECT TO CHANGE • MINIMUMS MAY APPLY • VISIT OUR WEBSITE FOR CURRENT PRICING.
