430
PROCESSING

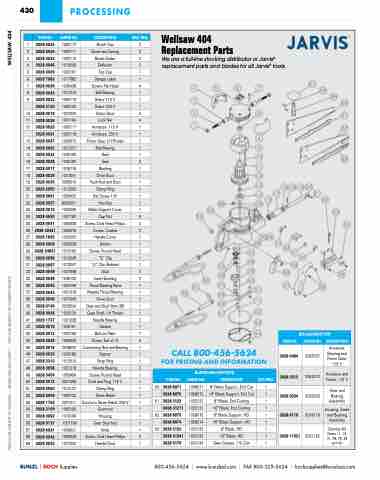

Wellsaw 404 Replacement Parts
We are a full-line stocking distributor or Jarvis® replacement parts and blades for all Jarvis® tools.
ITEM NO.
JARVIS NO.
DESCRIPTION
REQ. REQ.
1 3028 0025 1063112 Brush Cap 2
2
3028 0024
1063111
Brush and Spring
2
3 3028 0023 1063110 Brush Holder 2
4
3028 0046
1015006
Deflector
2
5 3028 0009 1002191 Top Cap 1
6
3028 7083
1017083
Danger Label
1
7 3028 0039 1055428 Screw, Flat Head 4
8
3028 0043
1021215
Ball Bearing
1
9 3028 0022 1063119 Stator 115 V 1
3028 3120
1063120
Stator 230 V
1
10 3028 0019 1027040 Stator Stud 2
11
3028 0036
1007164
Lock Nut
4
12 3028 0020 1063117 Armature, 115 V 1
3028 0021
1063118
Armature, 230 V
1
13 3028 0047 1026072 Pinion Gear, LH Thread 1
14
3028 0063
1021227
Ball Bearing
1
15 3028 0032 1035193 Seal 1
16
3028 0028
1035192
Seal
2
17 3028 0017 1036116 Bushing 1
18
3028 0029
1027041
Drive Stud
1
19 3028 0035 3065010 Push Rod and Stud 1
20
3028 2050
1012050
Clamp Ring
1
21 3028 0061 1055422 Set Screw 1/4" 1
22
3028 0037
8030031
Hex Key
1
23 3028 0010 1002206 Blade Support Cover 1
24
3028 0050
1007162
Cap Nut
6
25 3028 0041 1055439 Screw, Oval Head Phillips 2
26
3028 42421
1054076
Screw, Coated
3
27 3028 1693 1002203 Handle Cover 1
28
3028 0006
1005038
Switch
1
29 3028 34631 1073190 Screw, Round Head 2
30
3028 0096
1012046
“S” Clip
1
31 3028 0097 1012047 “U” Clip (Rubber) 1
32
3028 0049
1027048
Stud
3
33 3028 0048 1036120 Insert Bushing 3
36
3028 0045
1004149
Thrust Bearing Race
1
37 3028 0044 1021218 Needle Thrust Bearing 1
38
3028 0056
1027043
Drive Stud
1
39 3028 0136 3026024 Gear and Stud (Item 38) 1
40
3028 0026
1020133
Gear Shaft, LH Thread
1
41 3028 1737 1021228 Needle Bearing 2
42
3028 0015
1035191
Gasket
1
43 3028 0012 1002193 Bottom Plate 1
44
3028 0038
1055426
Screw, Set of 12
4
45 3028 0016 3028030 Connecting Rod and Bearing 1
46
3028 0033
1029185
Spacer
1
47 3028 3310 1013310 Snap Ring 1
48
3028 0058
1021216
Needle Bearing
2
49 3028 5454 1055454 Screw, Round Head 1
50
3028 0013
3001008
Cord and Plug, 115 V
1
51 3028 0060 1013137 Clamp Ring 1
52
3028 0059
1063125
Strain Relief
1
53 3028 1762 3001011 Cord w/o Strain Relief, 230 V 1
54
3028 3109
1063109
Grommet
1
55 3028 0062 1016199 Housing 1
56
3028 0137
1007166
Gear Stud Nut
1
57 3028 6021 1006021 Knob 1
58
3028 0042
1055429
Screw, Oval Head Phillips
2
59 3028 0030 1027042 Handle Stud 1
CALL 800-456-5624 FOR PRICING AND INFORMATION
ITEM NO.
DESCRIPTION
ITEM NO.
REPLACEMENT KITS
3028 0064 3063007
Armature, Bearing and Pinion Gear, 115 V
JARVIS NO.
DESCRIPTION
BLADES AND SUPPORTS
JARVIS NO.
QTY. REQ.
3028 3013
3063013
Armature and Pinion, 115 V
60 3028 8071 1058071 8" Blade Support, End Cut 1
Gear and 3028 0034 3026023 Bearing
Assembly
3028 8070
1058070
16" Blade Support, End Cut
1
61 3028 3122 1023122 8" Blade, End Cutting 1
3028 31211
1023121
62 3028 8075 1058075 8" Blade Support, HD 1
16" Blade, End Cutting
1
3028 6119
3016119
Housing, Seals and Bushing Assembly
3028 8074
1058074
16" Blade Support, HD
1
63 3028 3123 1023123 8" Blade, HD 1
3028 31241
1023123
16" Blade, HD
1
3028 11521 3061152
Service Kit (Items 11, 13, 21, 28, 29, 38 and 42)
3028 0179 1023124 Gear Grease, 1 lb Can 1
BUNZL | KOCH Supplies 800-456-5624 | www.bunzlpd.com | FAX 800-329-5624 | kochsupplies@bunzlusa.com
PRICES ARE SUBJECT TO CHANGE • MINIMUMS MAY APPLY • VISIT OUR WEBSITE FOR CURRENT PRICING. WELLSAW 404
