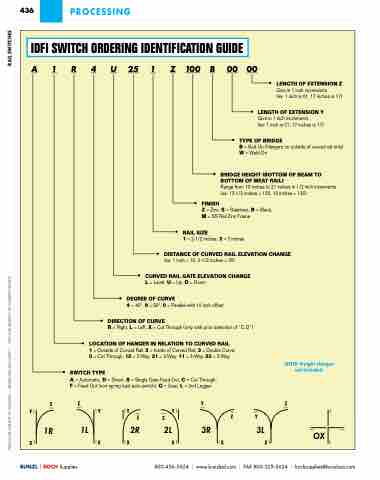

IDFI SWITCH ORDERING IDENTIFICATION GUIDE
A 1 R 4 U 25 1 Z 100 B 00 00
(ex: 1 inch = 10, 2-1/2 inches = 25)
CURVED RAIL GATE ELEVATION CHANGE L = Level, U = Up, D = Down
DEGREE OF CURVE
4 = 45°, 9 = 90°, 0 = Parallel with 10 inch offset
DIRECTION OF CURVE
R = Right, L = Left, X = Cut Through (only with prior selection of “C,O”)
LOCATION OF HANGER IN RELATION TO CURVED RAIL
1 = Outside of Curved Rail, 2 = Inside of Curved Rail, 3 = Double Curve, 0 = Cut Through, 12 = 3-Way, 21 = 3-Way, 11 = 3-Way, 22 = 3-Way
SWITCH TYPE
A = Automatic, D = Divert, S = Single Gate Feed Out, C = Cut Through,
F = Feed Out (non spring load auto-switch), G = Gear, L = 2nd Legger
NOTE: Freight charges not included.
YYYY ZZ
ZY
TYPE OF BRIDGE
B = Bolt On (Hangers on outside of curved rail only) W=WeldOn
BRIDGE HEIGHT (BOTTOM OF BEAM TO BOTTOM OF MEAT RAIL)
Range from 10 inches to 21 inches in 1/2 inch increments (ex: 13-1/2 inches = 135, 13 inches = 130)
FINISH
Z = Zinc, S = Stainless, B = Black, M = SS Rail Zinc Frame
RAIL SIZE
1 = 2-1/2 inches, 2 = 3 inches
DISTANCE OF CURVED RAIL ELEVATION CHANGE
ZZYZ
LENGTH OF EXTENSION Z
Give in 1 inch increments
(ex: 1 inch is 01, 17 inches is 17)
LENGTH OF EXTENSION Y
Give in 1 inch increments
(ex: 1 inch is 01, 17 inches is 17)
1R 1L 2R 2L 3R 3L XXXXXX
OX
