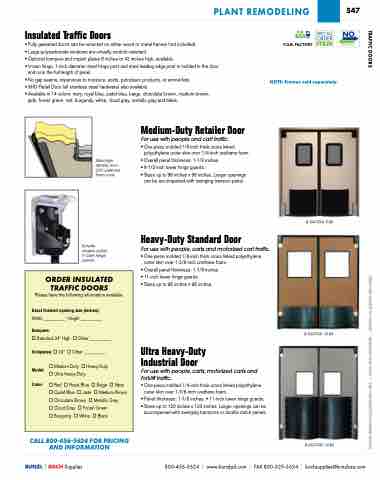

Page 547 - 2021 Bunzl Buyers Guide Interactive Catalog

Insulated Traffic Doors
• Fully gasketed doors can be mounted on either wood or metal frames (not included).
• Large polycarbonate windows are virtually scratch-resistant.
• Optional bumpers and impact plates 6 inches to 42 inches high, available.
• V-cam hinge; 1-inch diameter steel hinge post and steel leading edge post is molded in the door and runs the full length of panel.
• No gap seams; impervious to moisture, acids, petroleum products, or animal fats.
• XHD Retail Door (all stainless steel hardware) also available.
• Available in 14 colors: navy, royal blue, cadet blue, beige, chocolate brown, medium brown, jade, forest green, red, burgundy, white, cloud gray, metallic gray and black.
F.O.B. FACTORY
NOTE: Frames sold separately.
Ultra-high density, non- CFC urethane foam core.
Durulite double-action V-Cam hinge system.
Medium-Duty Retailer Door
For use with people and cart traffic.
• One-piece molded 1/8-inch thick cross linked polyethylene outer skin over 1/4-inch urethane foam.
• Overall panel thickness: 1-1/2 inches.
• 8-1/2-inch lower hinge guards.
• Sizes up to 96 inches x 96 inches. Larger openings can be accompanied with swinging transom panel.
Heavy-Duty Standard Door
For use with people, carts and motorized cart traffic.
• One-piece molded 1/8-inch thick cross linked polyethylene outer skin over 1-3/8-inch urethane foam.
• Overall panel thickness: 1-7/8 inches.
• 11-inch lower hinge guards.
• Sizes up to 96 inches x 96 inches.
Ultra Heavy-Duty Industrial Door
For use with people, carts, motorized carts and
forklift traffic.
• One-piece molded 1/4-inch thick cross linked polyethylene outer skin over 1-3/8-inch urethane foam.
• Panel thickness: 1-7/8 inches. • 11-inch lower hinge guards.
• Sizes up to 120 inches x 120 inches. Larger openings can be accompanied with swinging transoms or double dutch panels.
R-FACTOR: 9.86
PLANT REMODELING
547
ORDER INSULATED TRAFFIC DOORS
Please have the following information available.
Exact finished opening size (inches):
Width __________ Height __________
Bumpers:
oStandard 24" High oOther __________ Kickplates:o24" oOther __________
Model: Color:
oMedium-Duty oHeavy-Duty oUltra Heavy-Duty
oRed oRoyal Blue oBeige oNavy oCadet Blue oJade oMedium Brown oChocolate Brown oMetallic Gray oCloud Gray oForest Green oBurgundy oWhite oBlack
CALL 800-456-5624 FOR PRICING AND INFORMATION
R-FACTOR: 10.83
